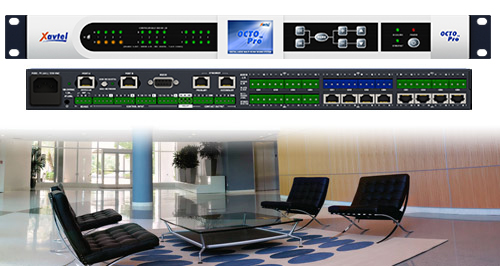

The OCTO Pro is a AVB networkable DSP processor with LED control panel. The OCTO Pro is capable of handling up to 24x24 analog I/O or 48x48 digital I/O per unit in a 1U height and 19 inches rack. For even larger installations, up to 64 OCTO Pro can be cascaded over Xavnet redundant network or AVB network.

With exclusive optional OCTO-Link which offers 2 CH IN and 2 CH OUT per port for simultaneously transmitting digital audio and control, the OCTO Pro provides a wide variety of remote digital I/O expansion and remote control for various range of Xavtel RWD-series. The OL-AMP, the Low-Z digital amplifier provides the excellent audio quality for a centralized multi-room of applications. The connection is done with standard CAT5/CAT6 up to 820FT(250M).

The OCTO Pro can be integrated for Home & Office Automation, and logic I/O. In addition of RS485, RS232 or Ethernet port are available for 3rd party control. The OCTO Pro incorporates a powerful DSP such as logic blocks, custom components, page controller, ambient noise compensation, room combiner, ANR(Acoustic Nose Reduction) etc. It allows for optional AEC channels for both analogue and VoIP teleconference system and can accept and send an audio stream right from the TCP/IP network.

The OCTO Pro DSP processor is suitable to be used in distinct areas, especially the medium to large projects such as airport, yachts, train stations, bar, restaurant, hotels, theaters, etc.
